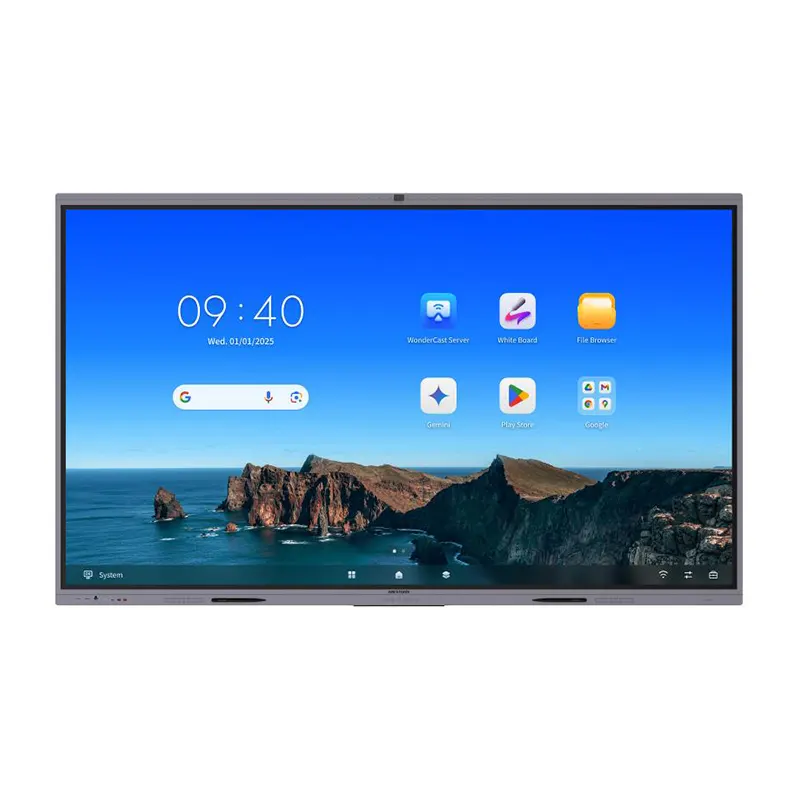

Hikvision DS-D5A65RB/B3 65-Inch 4K UHD Interactive Flat Panel Smart Board With 8GB RAM 512GB SSD Windows OPS Module
Key Specifications
- • Dual OS Powerhouse: Features an Android 14 system with 8GB RAM and an extra slot-in Intel Core Windows OPS PC module loaded with a fast 512GB SSD storage drive.
- • Stunning 4K Screen: Built with a 65-inch Ultra HD (3840 x 2160) Zero-Lamination display panel shielded by scratch-resistant 9H anti-glare tempered glass.
- • 50-Point Multi-Touch: Equipped with a high-precision Infrared touch sensor tracking matrix that supports up to 50 simultaneous interactive touch points.
- • AI Video Conferencing: Integrates a high-resolution 48MP smart camera array alongside an 8-array microphone setup with clear 12-meter voice pickup.
- • Rich Connectivity Hub: Packed with modern Wi-Fi 6 wireless chips, Bluetooth 5.4, high-speed HDMI 2.1 inputs, and full-function Type-C data and power ports.
Why shop from ONIN?
- 100% Authentic Products
- Official Warranty Support
- Easy Returns & Exchange
Free Express Delivery
Fast shipping on all orders
In-Store Pickup
Collect today — View on Map
| Brand | Hikvision |
| Model | DS-D5A65RB/B3 |
| Screen Size | 65 inch |
| Backlight | DLED |
| Pixel Pitch | 0.124 (H) × 0.372 (V) mm |
| Resolution | 3840 × 2160 @60 Hz |
| Brightness | 400 cd/m² |
| Color Depth | 10 bit (8 bit + FRC) |
| Display Color | 1.07 B |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H)/178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil) 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1428.48 (H) × 803.52 (V) mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch Type | Infrared Touch Screen |
| Touch Point | Up to 50-point multi-touch |
| Touch Response Time | ≤ 5 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 |
| Operation System | Android 14.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz） |
| GPU | Mali-G52 MC3 |
| HDCP Version | 2.3 & 2.2 & 1.4 |
| Camera Pixel | Pixel 48 MP for Photos & 8 MP for Video |
| Camera Function | Supports intelligent switching between Android system, OPS, and PC. |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) |
| Distortion | ≤ 2.5% |
| Camera Resolution Ratio | Up to 4K |
| Specification | Omni-directional 8-array layout |
| Mic Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 48 K |
| Mic Depth | 16 bit |
| Loudspeaker | Built-in 2 × 20 W |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 |
| NFC | Supports card reader 13.56 MHz, (ISO 14443A/ ISO 14443B) |
| Light Sensor | Yes |
| Image Processing Technology | Supports 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, and automatic defogging; supports shadow correction. |
| Audio Processing Technology | Supports dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, digital beam forming, and speech detection. |
| Video & Audio Input | HDMI 2.1 TMDS × 3（Front × 1; Rear × 2; Supports HDCP 2.3 & 2.2 & 1.4; HDMI1 Supports CEC&ARC protocol） Audio × 1（Rear） |
| Video & audio output | Audio × 1（Rear） |
| Control interface | TOUCH-USB 2.0 × 1（Front × 1） TOUCH-USB 2.0 × 1（Rear × 1） RS232 × 1（Rear） |
| Network Interface | LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
| Data Transmission Interface | USB 3.0 × 2（Front × 2） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Supports USB 3.0, 15 W charging functions) TF-Card Slot × 1（Rear × 1） |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 160 W |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| VESA | 600 mm × 400 mm (4 × M8-25 mm) |
| Working Humidity | 10%~90% RH |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control. |
| Package Dimensions (W × H × D) | 1662.0 × 1062.0 × 223.0 mm |
| Net Weight | 33.00 ± 0.5 kg |
| Gross Weight | 44.16 ± 0.5 kg |
| Product Dimensions （With Wall Attachment） | 1488.48 mm × 910.6 mm × 111.7 mm（W × H × D） |
| Product Dimensions （Without Wall Attachment） | 1488.48 mm × 910.6 mm × 83 mm（W × H × D） |
| Warranty | 1 years official warranty |
Revolutionize Collaboration: Hikvision DS-D5A65RB/B3 Smart Board Price in Nepal Insights
In modern corporate boardrooms and digital learning centers, traditional standard display screens no longer suffice. The masterfully engineered Hikvision DS-D5A65RB/B3 65-Inch 4K UHD Interactive Flat Panel Smart Board marks an evolutionary milestone in structural presentation tech. Seamlessly blending interactive commercial displays with high-speed computing, this flagship display panel addresses performance challenges faced by schools, universities, and administrative centers across Nepal. Whether hosting global video conferences from corporate headquarters in Kathmandu or deploying remote digital training modules, this smart board is designed to enhance productivity.
When you invest in the genuine Nepal variant at Onin Infosys for a competitive price of रू 189,999, you are buying more than a standalone screen. You are securing a premium dual-operating-system hub built to deliver outstanding performance year after year. Let us explore the specialized engineering and real-world advantages that make this model a smart choice for your organization.
Ultimate Processing Power: Dual OS Architecture With 8GB RAM And 512GB SSD Windows OPS
The standout feature of this hardware profile is its dual-engine computer processing system. The core display chassis comes equipped with an integrated Android 14.0 system optimized with an advanced EDLA certification layer. This native platform relies on a 64-bit multi-core processing architecture, including 8GB LPDDR system memory paired with 128GB of internal eMMC storage. This hardware setup ensures ultra-smooth operation when rendering complex PDF files, launching mobile applications, or handling multi-window screen casting.
To meet the demands of enterprise-level software infrastructure, this display panel includes a dedicated hardware slot containing an intelligent Intel Core Windows OPS Module. This Open Pluggable Specification slide-in computer adds elite processing power directly to the unit:
- Enhanced System Memory: A dedicated 8GB RAM chip handles concurrent background data threads without performance bottleneck issues.
- High-Capacity NVMe Flash Storage: The integrated 512GB SSD delivers rapid system boot times and offers ample storage space for critical presentations, locally stored 4K video files, and heavy enterprise application databases.
- Universal Enterprise Compatibility: Run full desktop installations of native Windows applications including Microsoft Office 365, Zoom Rooms, Adobe Creative Suite, and specialized CAD modeling engines directly on the board.
- Cable-Free Modular Setup: The OPS PC draws electrical power directly from the display's internal bus and routes digital video output internally, completely eliminating messy external power cables or dangling HDMI connections.
Unrivaled Panel Precision: Zero-Lamination 4K Display Layer Featuring 50-Point Multi-Touch Controls
Visual presentation quality depends heavily on precise touch response and structural panel integrity. The Hikvision DS-D5A65RB/B3 addresses this with a professional-grade 65-inch Direct-Lit LED (DLED) display matrix operating at native 4K Ultra HD (3840 × 2160) resolutions with a smooth 60 Hz refresh rate. Covered by an industrial 9H pencil hardness tempered glass layer with a 25% internal light-diffusing haze treatment, it reduces ambient office light reflections while resisting physical scratches.
This premium display is constructed using advanced Zero Lamination structural bonding technology. By eliminating the air gap between the outer tempered glass and the inner liquid crystal layer, optical refraction is minimized. This provides wide 178-degree viewing angles and precise parallax alignment when writing with a stylus. The touch response system features a highly responsive Infrared Digitizer Matrix that detects up to 50 simultaneous touch points with a latency of ≤ 5 ms. Multiple users can collaborate, draw, write notes, and use multi-finger zoom gestures simultaneously across the screen with pen-on-paper accuracy.
Next-Gen AV Integration: 48MP Smart AI Lens Coupled With Integrated 12-Meter Audio Pickup Arrays
For modern hybrid work environments, clear audio and video quality are essential. This interactive board features a premium, integrated multimedia setup that eliminates the need for separate external webcams and soundbars:
- AI-Powered 48MP Camera Array: Captures high-resolution photos and delivers sharp 8MP video output during virtual meetings. It includes automatic speaker tracking and digital framing adjustments to keep your team visible in any meeting space.
- Omni-Directional 8-Array Microphone: Arranged along the top bezel, this system captures clear voice audio with a linear range of up to 12 meters. Integrated echo cancellation and acoustic background noise reduction ensure your team is heard clearly without room echo.
- Chambered Dual 20W Loudspeakers: High-fidelity stereo drivers throw crisp, resonant sound across large rooms, ensuring remote participants' voices and video audio remain clearly audible.
Why Savvy Tech Buyers In Nepal Choose Onin Infosys For Smart Office Systems
As an established name in Nepal's laptop and office electronics e-commerce landscape, Onin Infosys delivers verified product sourcing, secure payment channels, and reliable technical support. Buying your interactive hardware through our platform ensures long-term security for your investment. Every commercial display shipment undergo strict quality checks before dispatch, and our dedicated technical engineers assist with on-site deployment, mounting installation, and local network integration.
Our competitive pricing of रू 189,999 for this premium 8GB RAM and 512GB SSD Windows OPS configuration provides an all-in-one presentation solution. Upgrading your office or school infrastructure with this dual-OS smartboard helps minimize separate hardware costs for external computers, sound systems, webcams, and whiteboards.
Hikvision DS-D5A65RB/B3 Frequently Asked Questions (FAQ)
Q1: Can I switch between the Android and Windows systems instantly on the Hikvision DS-D5A65RB/B3?
A1: Yes, the built-in system includes a quick-access sidebar menu. You can switch between the Android 14.0 interface and the Windows OPS system with a single tap, without rebooting the display hardware or changing any physical cables.
Q2: Does the listed price of रू 189,999 include both the display panel and the 512GB SSD Windows OPS module?
A2: Yes, this package from Onin Infosys includes both the 65-inch interactive display panel with 8GB RAM and the dedicated slot-in Intel Windows OPS PC module equipped with 8GB RAM and a 512GB NVMe Solid State Drive.
Q3: What are the benefits of Zero Lamination technology on this interactive smart board?
A3: Zero Lamination bonds the touch glass directly to the LCD panel, removing the air gap between them. This reduces visual glare, eliminates light refraction, and ensures the digital ink appears right under the tip of your stylus for a natural writing experience.
Q4: Is this interactive flat panel compatible with wireless screen mirroring from laptops and smartphones in Nepal?
A4: Yes, the smart board features built-in dual-band Wi-Fi 6 modules. It supports wireless screen casting from multiple devices simultaneously, including Windows laptops, Apple MacBooks, iPhones, and Android smartphones, via native casting protocols and dedicated applications.
Q5: What kind of warranty support does Onin Infosys offer for this specialized commercial display panel?
A5: Onin Infosys provides an official hardware warranty on the Nepal variant of the Hikvision DS-D5A65RB/B3 display and its companion Windows OPS component. Our in-house technical support team provides troubleshooting, component diagnostics, and firmware updates across Nepal.
